Poloplast POLO-KAL NG
Vacuum Piping
Low weight, long-lasting, low price tag
System

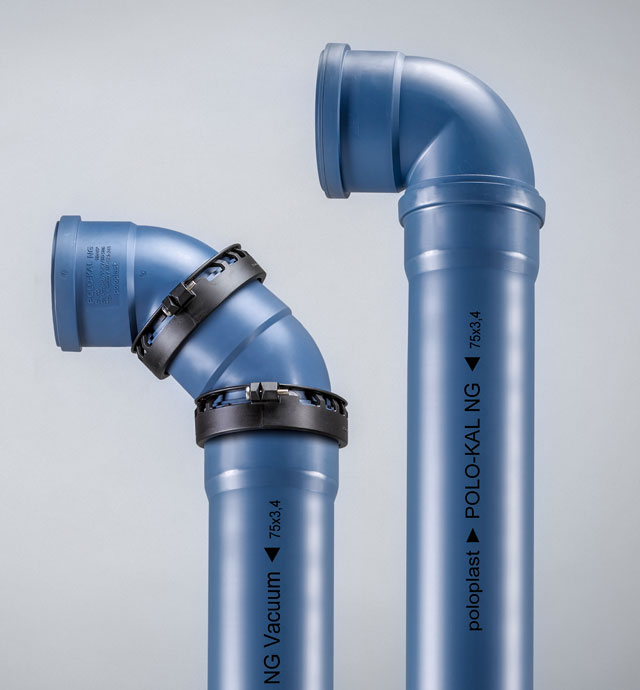

POLO-KAL NG Vacuum is a Polypropylene (PP) multi-layer vacuum drainage system, comprising tubes and fittings with push-fit sockets and factory-inserted lip seals made of Styrene Butadiene Rubber (SBR). These pipes and fittings are commercial products with dimensions and quality according to EN 1451-1. The pipe consists of Polypropylene in the inner and outer layer. The middle layer additionally contains minerals for reinforcement. The fittings consist of Polypropylene and additional minerals for reinforcement.
Source: Poloplast
1. External layer (PP)
- The tough protective shell of the pipe
- Sturdy and highly impact resistant
2. Middle layer (Mineral-reinforced PP)
- Mineral-reinforced PP provides high stability and establishes the superior noise-insulating effect of POLO-KAL NG
3. Internal layer (PP)
- Tremendous surface smoothness and resistance to chemical agents
Advantages
The advantages of POLO-KAL NG
Source: Poloplast
- Low weight reduces the ship´s total weight and enables easy transport and assembling.
- High secure assembly due to its established push-fit system. No risk of fire caused by sparks when cutting or welding pipes.
- Easy and rapid assembly of the factory-sealed push-fit system POLO-KAL NG.
- Smooth inner surface prevents the accumulation of deposits. Saves time and costs due to elongated maintenance intervals.
- Precision sealing system and precisely-shaped push-fit sockets. Allows rapid assembly and ensures durable connections.
- 25 years of multi-layer technology experience. POLOPLAST has more than 25 years of knowledge and experience with the tried and tested 3-layer technology and 60 years of experience with above-ground drainage.
Comparison
POLO-KAL NG Vacuum / Stainless Steel
| POLO-KAL NG |
Stainless Steel | |
|---|---|---|
| Weight 3 m (DN 50) | 1.12 kg | |
| Total weight 20.000 m (DN 50) | ≈ 7.500 kg | ≈ 34.000 kg ² |
| System price factor (pipe, fittings, mounting) | 1 | 3 |
| ¹ Depends on manufacturer ² At average weight of 5.11 kg | ||
POLO-KAL NG Vacuum / PVC
| POLO-KAL NG |
PVC | |
|---|---|---|
| Installation simplicity and safety | Fast and safe push-fit | Complex and error-prone gluing |
| Flexibility | Fast adjustable and | Stiff and |
| Environmentally friendliness | No toxic gases, 100% | Toxic gases during gluing and in case of fire |
Inner Smoothness
| Surface Tension | |
|---|---|
| Teflon (Lotus effect) | 18 mN / m |
| POLO-KAL NG Vacuum | 28 mN / m |
| PVC | 40 mN / m |
| Stainless steel | 2.000 mN / m |
Product Range
| Nominal outer diameter (DN/0D, mm) |
Distance between brackets (horizontal, m) ¹ ² |
Distance between brackets (vertical, m) |
|---|---|---|
| 40 | 0.60 | 1.50 |
| 50 | 0.75 | 1.50 |
| 75 | 1.10 | 2.00 |
| ¹ Maximum 15 x da ² Dependent on building situation on board. At least distances as shown in the graph are applicable. | ||
